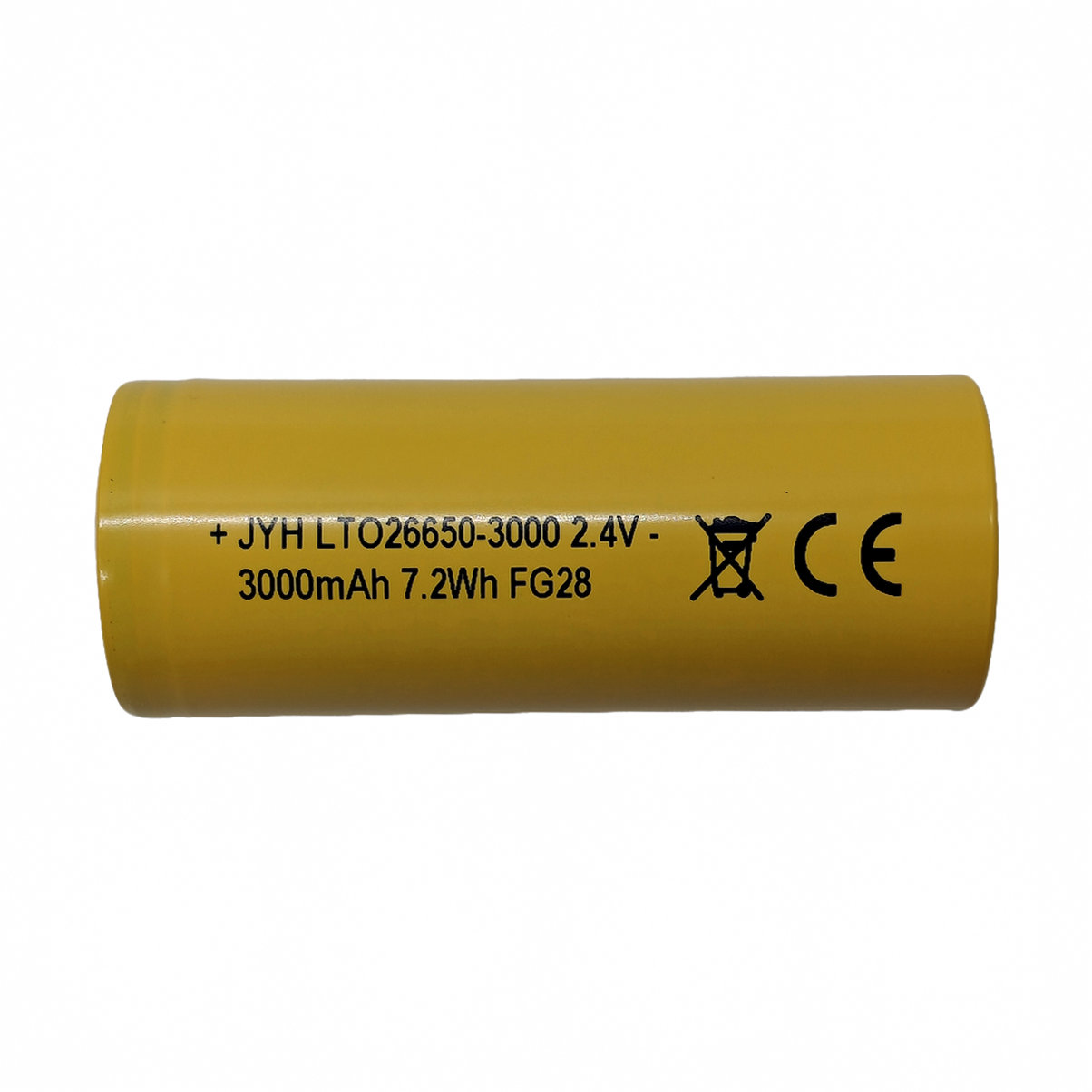

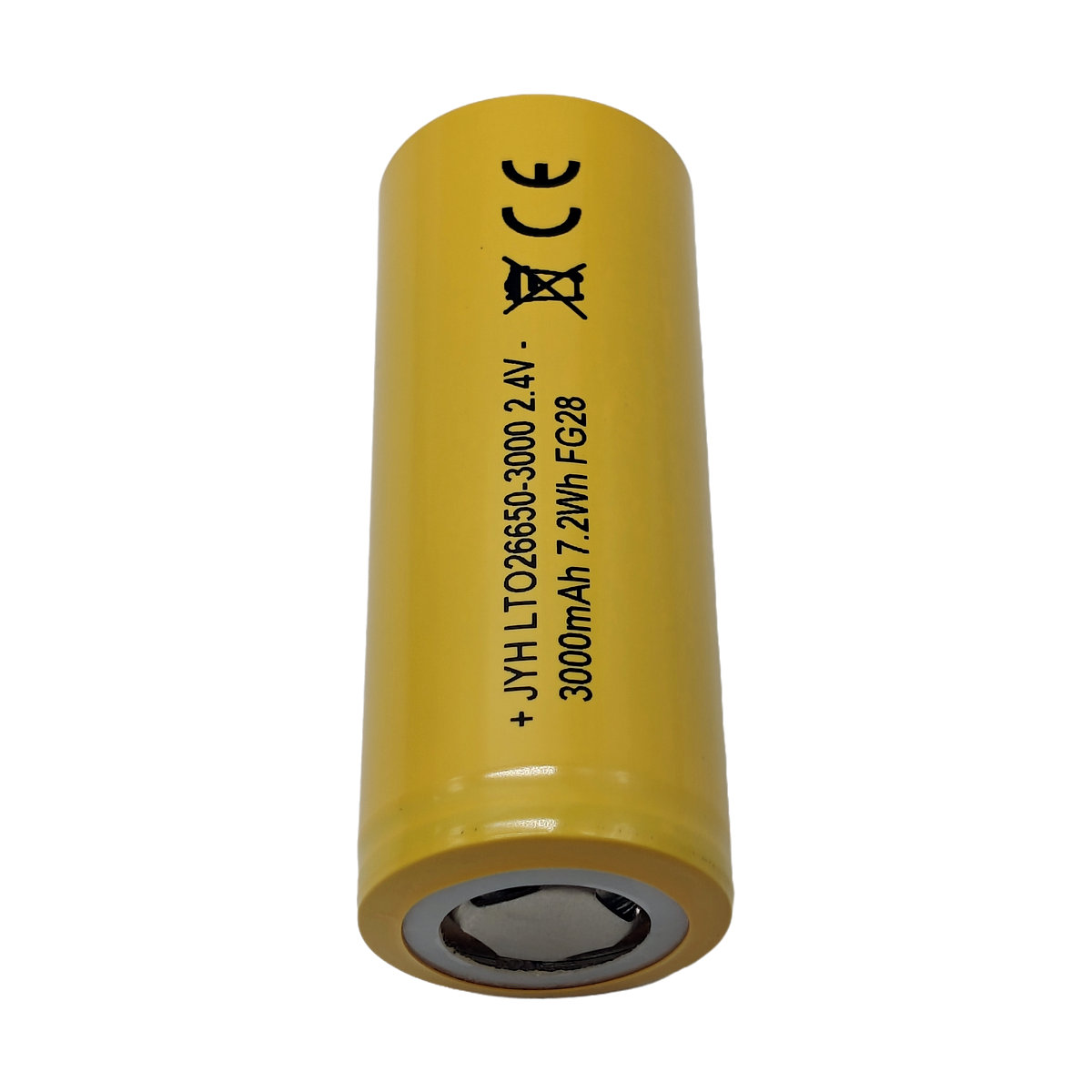

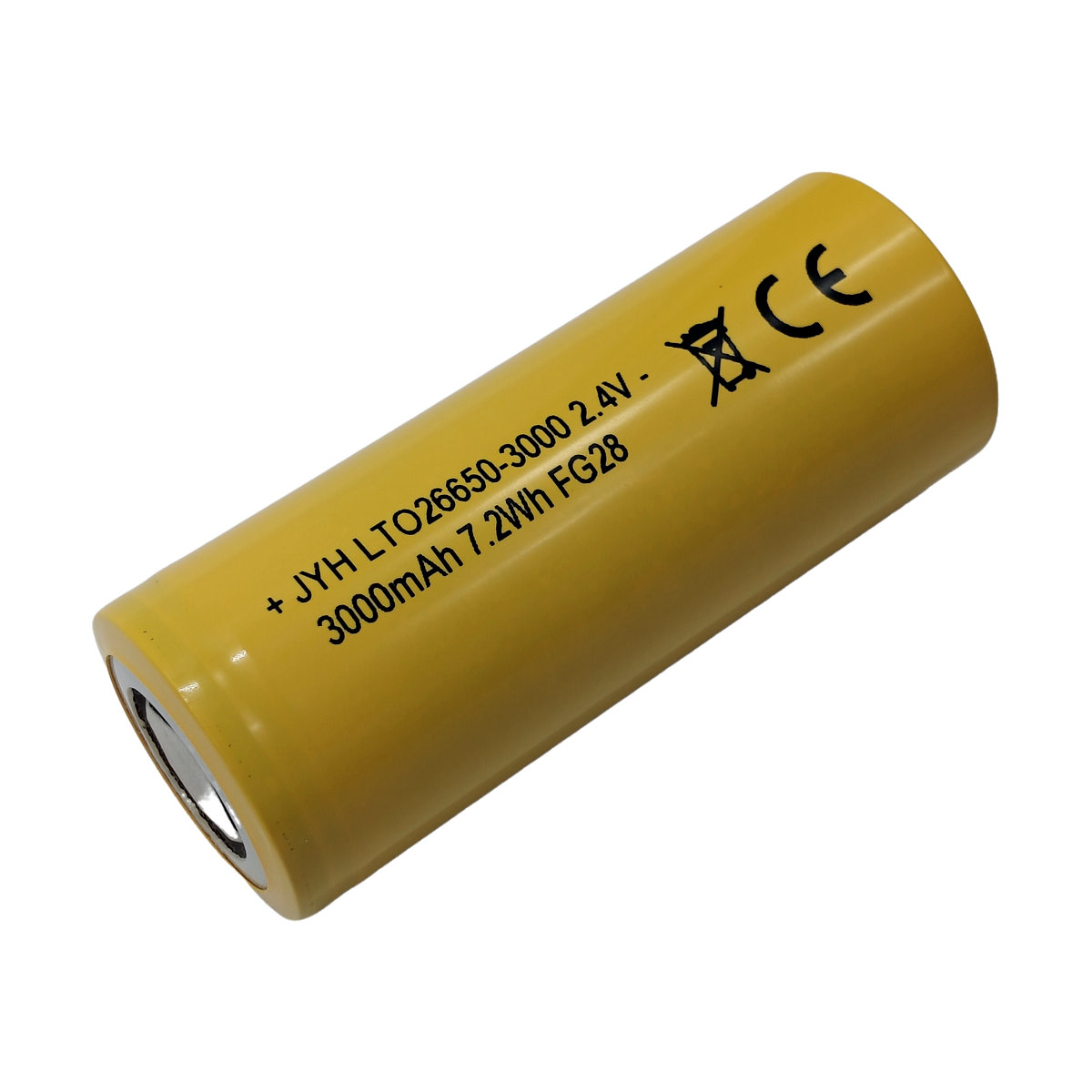

| Model | LTO26650-3000 |
| IEC Designation | ITR27/66 |
| Nominal Voltage | 2.4V |
| Nominal Capacity | 3000mAh |
| Typical Capacity | 3100mAh after standard charge and standard discharge |
| Minimum Capacity | 2900mAh after standard charge and standard discharge |
| Standard Charge |
Constant current at 1500mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤30mA |
| Fast Charge |
Constant current at 3000mA charge to 2.7V, then constant voltage at 2.7V charge till current decline to ≤30mA |
| Standard Discharge | 600mA to 1.5V |
| Fast Discharge | 3000mA to 1.5V |
| Maximum Continuous Charge Current |
600mA (-30℃~-20℃) 1500mA (-20℃~10℃) 3000 mA (10℃~20℃) 12000 mA (20~60℃) |
| Maximum Continuous Discharge Current | 12000mA |
| Operating Temperature |
Charge -30℃ to 60℃ Discharge -40℃ to 60℃ |
| Storage Temperature |
<1 year -10℃ to 25℃ <3 months -10℃ to 35℃ <30days -10℃ to 45℃ |
| Typical Weight | 89g |
