PRODUCT FEATURES
- LiFePO4 has a good performance in high temperature environment, long cycle life and safety.
- Based on latest requirement of IEC/EN 60598-2-22, Lithium battery should comply with IEC 62133-2 and IEC 62620, JYH LiFePO4 batteries can fully meet above standards.
CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- IEC 62620
- IEC 62133-2
- UN38.3
APPLICATION
Evacuation Light, Exit sign, ELU, Solar Light, Personal Care, Medical Devices, Roof, Backup Power....
OEM, ODM SUPPORT

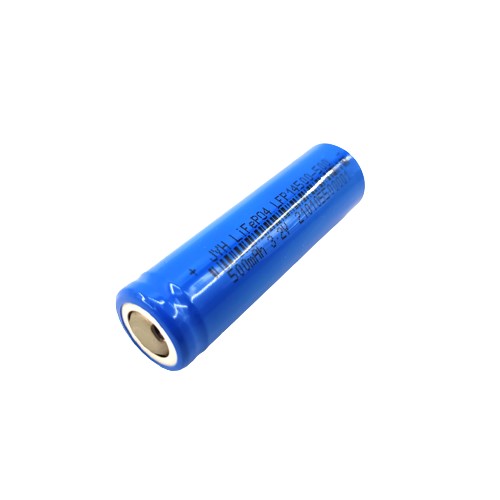

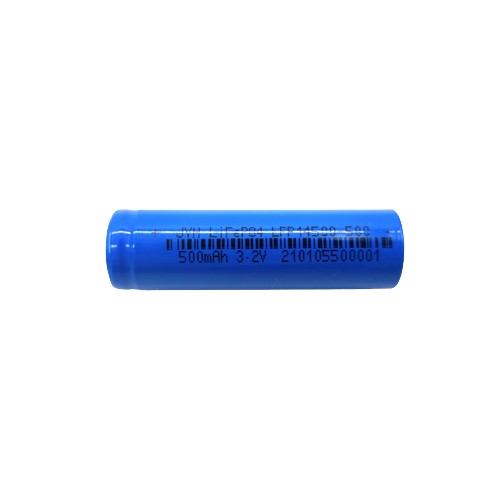

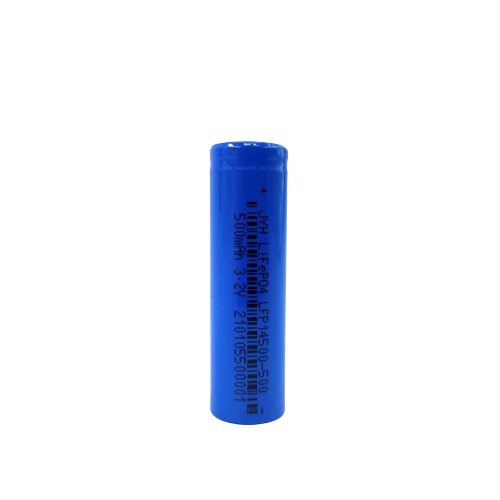

| Model | LFP14500-500 |
| IEC Designation | IFpR15/50 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 500mAh |
| Typical Capacity | 525mAh after standard charge and standard discharge |
| Minimum Capacity | 480mAh after standard charge and standard discharge |
| Standard Charge |
Constant current at 250mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤5mA |
| Fast Charge |
Constant current at 500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤5mA |
| Standard Discharge | 100mA to 2.0V |
| Fast Discharge | 500mA to 2.0V |
| Maximum Continuous Charge Current | 500mA |
| Maximum Continuous Discharge Current | 1500mA |
| Operating Temperature |
Charge 0℃ to 60℃ Discharge -20℃ to 60℃ |
| Storage Temperature |
<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 18g |
