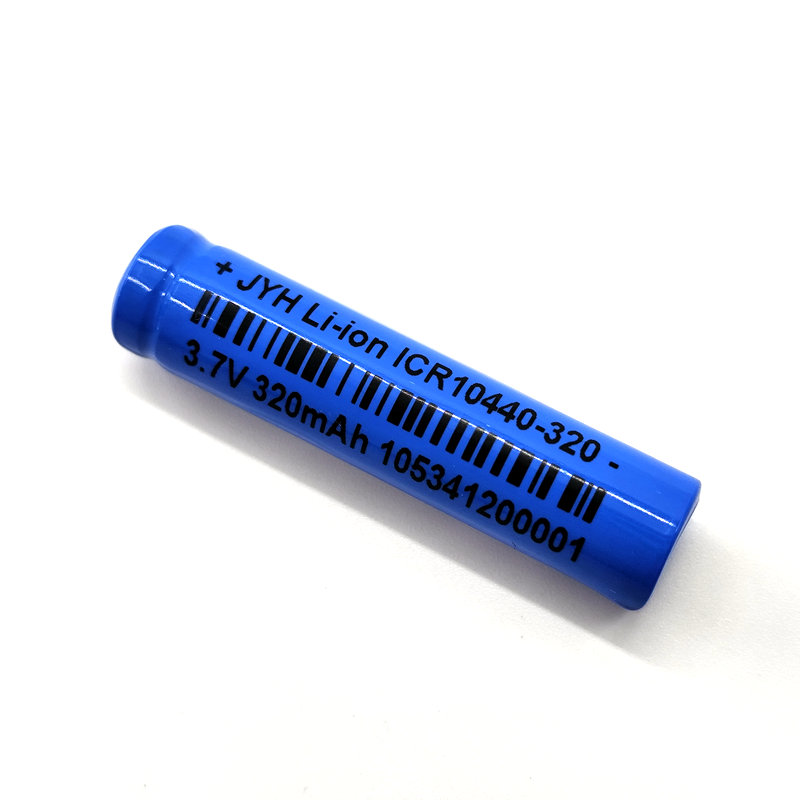

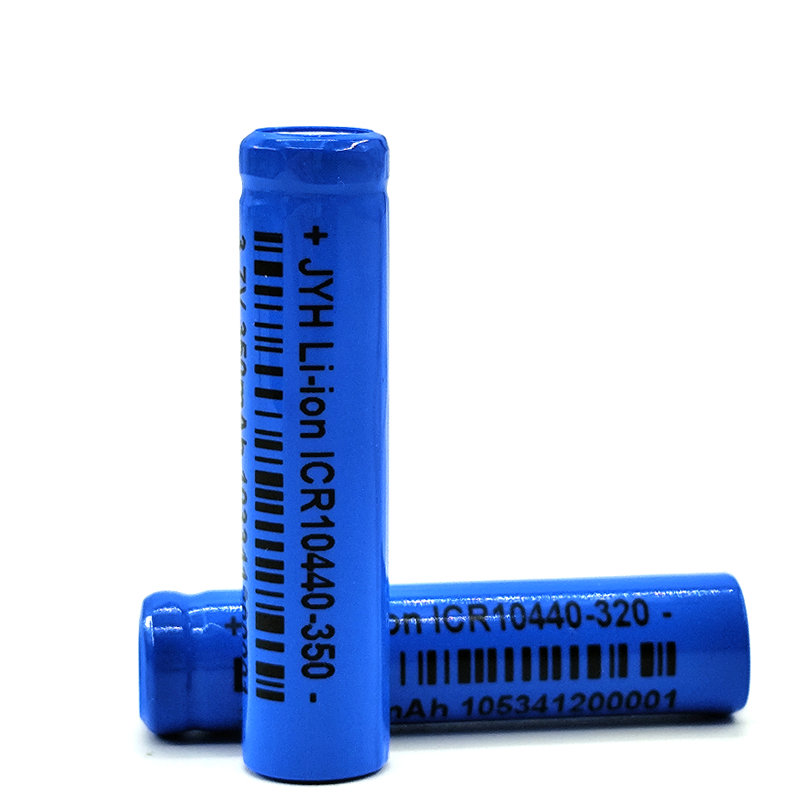

ICR10440-350

High Capacity

Product Features

Small size, high capacity up to 360mAh with test, similar to AAA model. Suitable to personal care products, such as electric facial brush, kids electric toothbrush.

CERTIFICATE OR REPORT:
CB (IEC62133-2), UL1642
ROHS Directive (2006/66/EC and its Article 4 amendment of Directive 2013/56/EU)
MSDS

TESTS PASSED:

Environmental Performance
Discharge Capacity at High Temperature
Discharge Capacity at Low Temperature
Constant Temperature and Humidity

Mechanical Performance
Vibration Test
Drop Test

Safety Performance
Overcharge
Over-discharge
Crush
Short-circuit
Heating
Impact
Low Pressure

Get a Quote

product details

Model Name	ICR10440-350
Nominal Voltage	3.7V
Nominal Capacity	350mAh
Typical Capacity	360mAh after standard charge and standard discharge
Minimum Capacity	330mAh after standard charge and standard discharge
Standard Charge	Constant current at 175mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤3.5mA
Fast Charge	Constant current at 350mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤3.5mA
Standard Discharge	70mA to 2.75V
Fast Discharge	350mA to 2.75V
Maximum Continuous Charge Current	350mA
Maximum Continuous Discharge Current	700mA
Operating Temperature	Charge 0℃ to 45℃ Discharge -20℃ to 60℃
Storage Temperature	<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃
Typical Weight	10g
