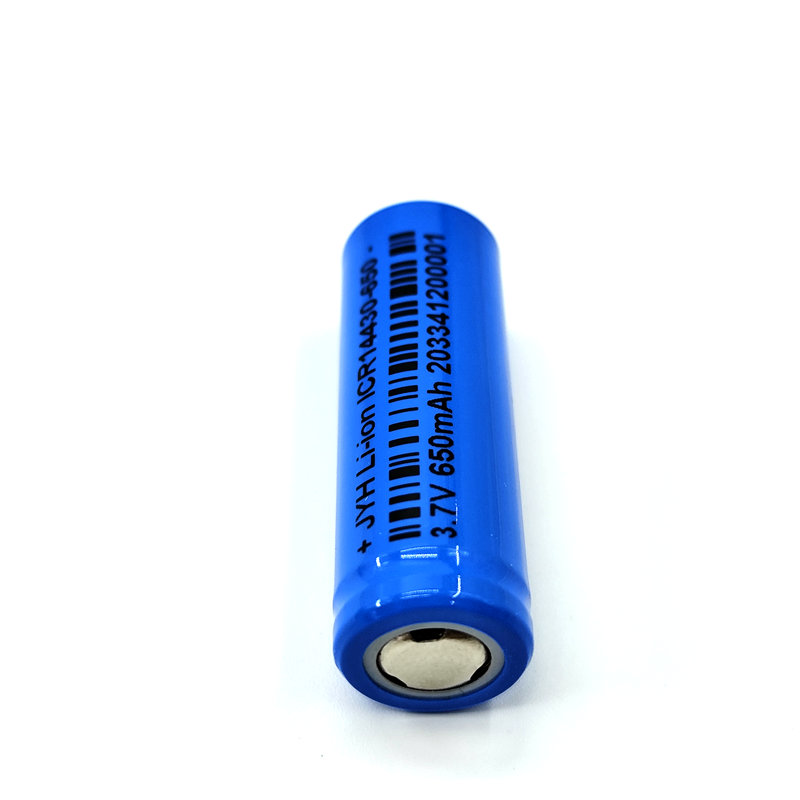

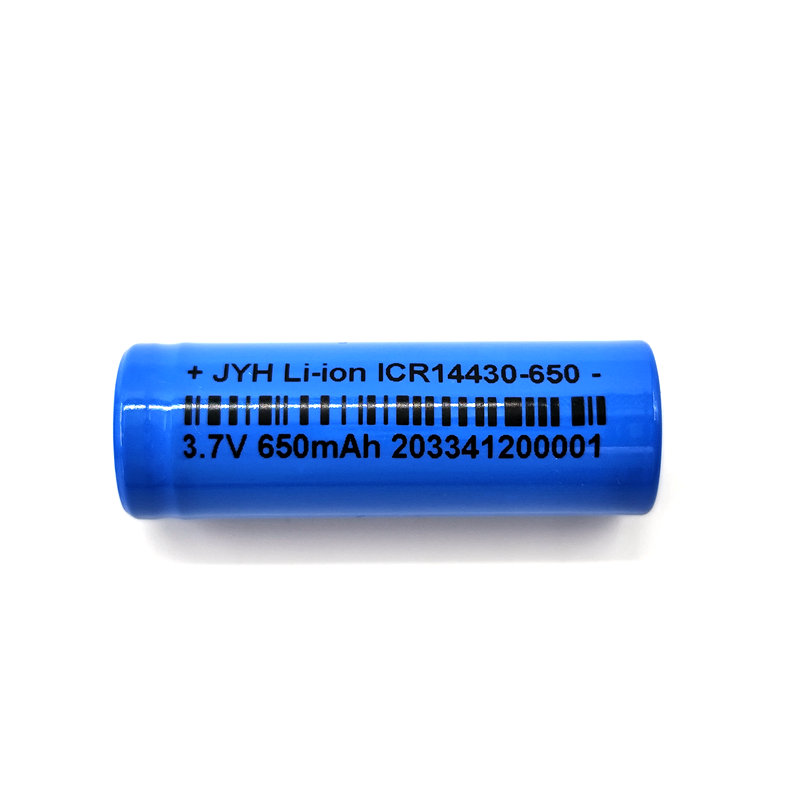

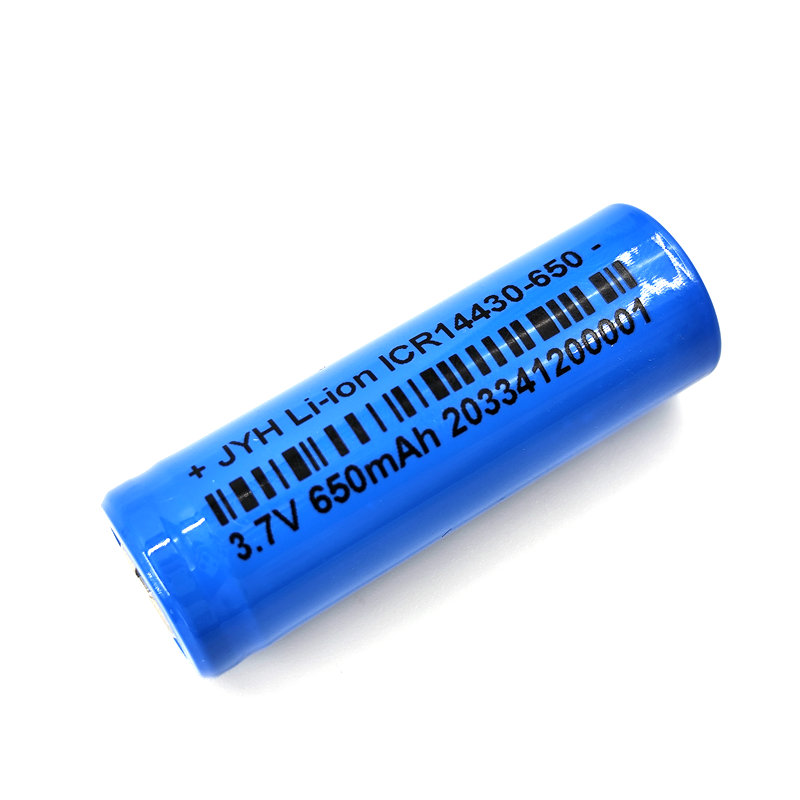

ICR14430-650

Standard Series

Product Features

Smaller size compare with ICR14500, with shorter in height, mostly use in personal care products, such as electric toothbrush, electric razor, etc.
CB (IEC62133-2), UL1642 certification.

CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- IEC 62133-2
- UN38.3

OEM, ODM SUPPORT

TESTS PASSED:

Environmental Performance
Discharge Capacity at High Temperature
Discharge Capacity at Low Temperature
Constant Temperature and Humidity
IEC62620 Clause 6.6.2 Endurance in storage at constant voltage (permanent charge life)

Mechanical Performance
Vibration Test
Drop Test

Safety Performance
Overcharge
Over-discharge
Crush
Short-circuit
Heating
Impact
Low Pressure

Get a Quote

product details

Model	ICR14430-650
Nominal Voltage	3.7V
Nominal Capacity	650mAh
Typical Capacity	680mAh after standard charge and standard discharge
Minimum Capacity	630mAh after standard charge and standard discharge
Standard Charge	Constant current at 325mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤6.5mA
Fast Charge	Constant current at 650mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤6.5mA
Standard Discharge	130mA to 2.75V
Fast Discharge	650mA to 2.75V
Maximum Continuous Charge Current	650mA
Maximum Continuous Discharge Current	1300mA
Operating Temperature	Charge 0℃ to 45℃ Discharge -20℃ to 60℃
Storage Temperature	<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃
Typical Weight	16g
