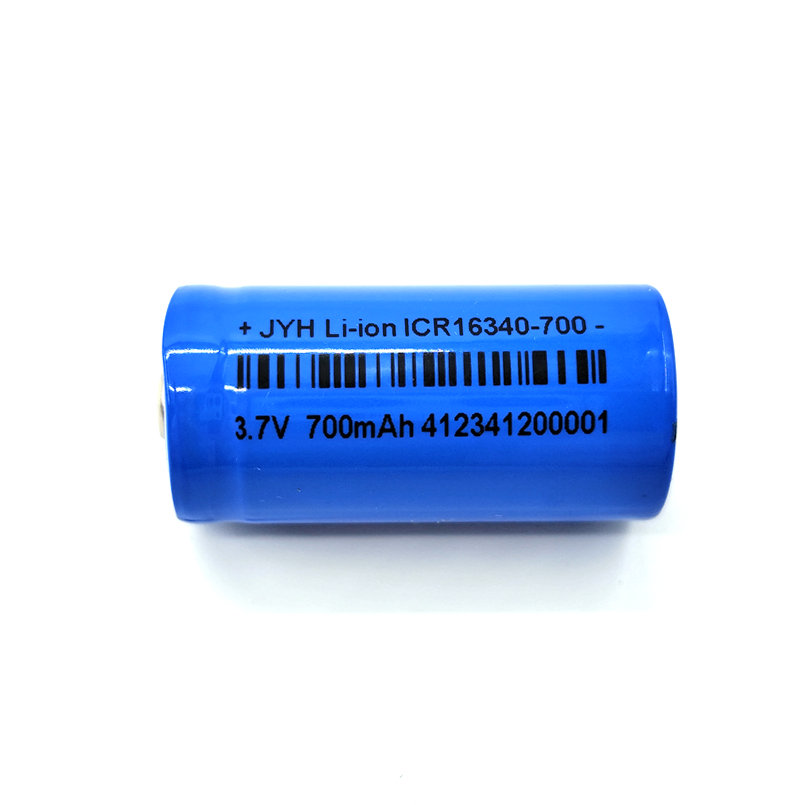

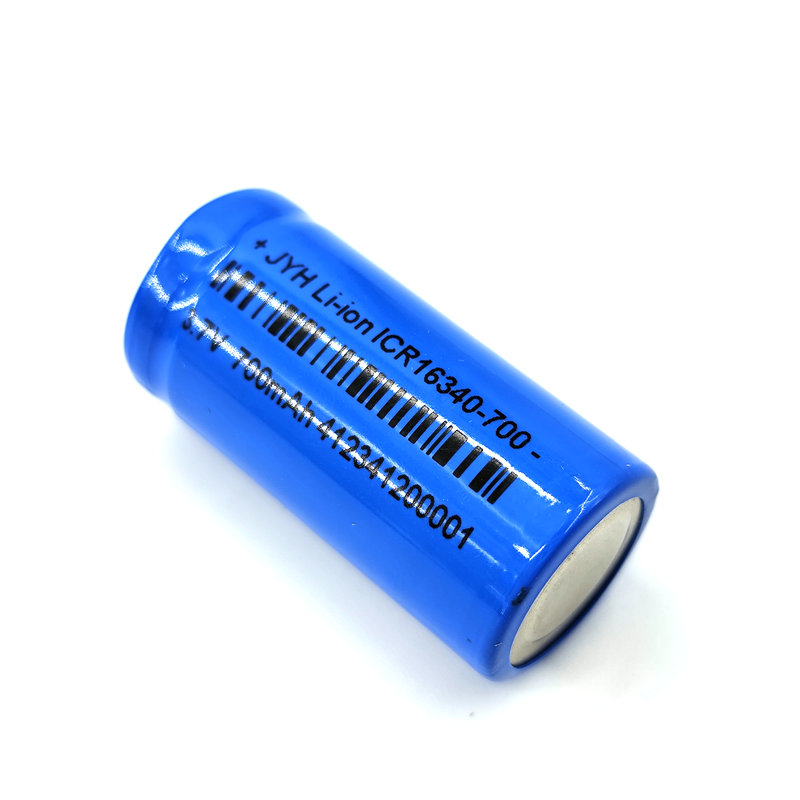

ICR16340-700

Standard Series

Product Features

Fit for CR123 size, high top, rechargeable

CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- UN38.3

OEM, ODM SUPPORT

TESTS PASSED:

Environmental Performance
Discharge Capacity at High Temperature
Discharge Capacity at Low Temperature
Constant Temperature and Humidity
IEC62620 Clause 6.6.2 Endurance in storage at constant voltage (permanent charge life)

Mechanical Performance
Vibration Test
Drop Test

Safety Performance
Overcharge
Over-discharge
Crush
Short-circuit
Heating
Impact
Low Pressure

Get a Quote

product details

Model	ICR16340-700
Nominal Voltage	3.7V
Nominal Capacity	700mAh
Typical Capacity	725mAh after standard charge and standard discharge
Minimum Capacity	670mAh after standard charge and standard discharge
Standard Charge	Constant current at 350mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤7mA
Fast Charge	Constant current at 700mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤7mA
Standard Discharge	140mA to 2.75V
Fast Discharge	700mA to 2.75V
Maximum Continuous Charge Current	700mA
Maximum Continuous Discharge Current	1400mA
Operating Temperature	Charge 0℃ to 45℃ Discharge -20℃ to 60℃
Storage Temperature	<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃
Typical Weight	17g
