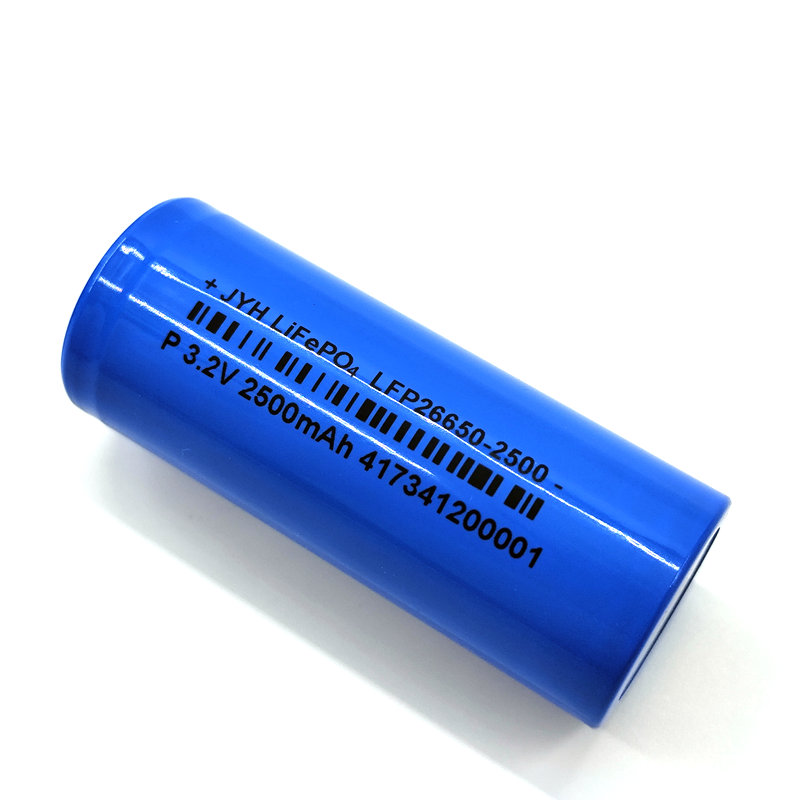

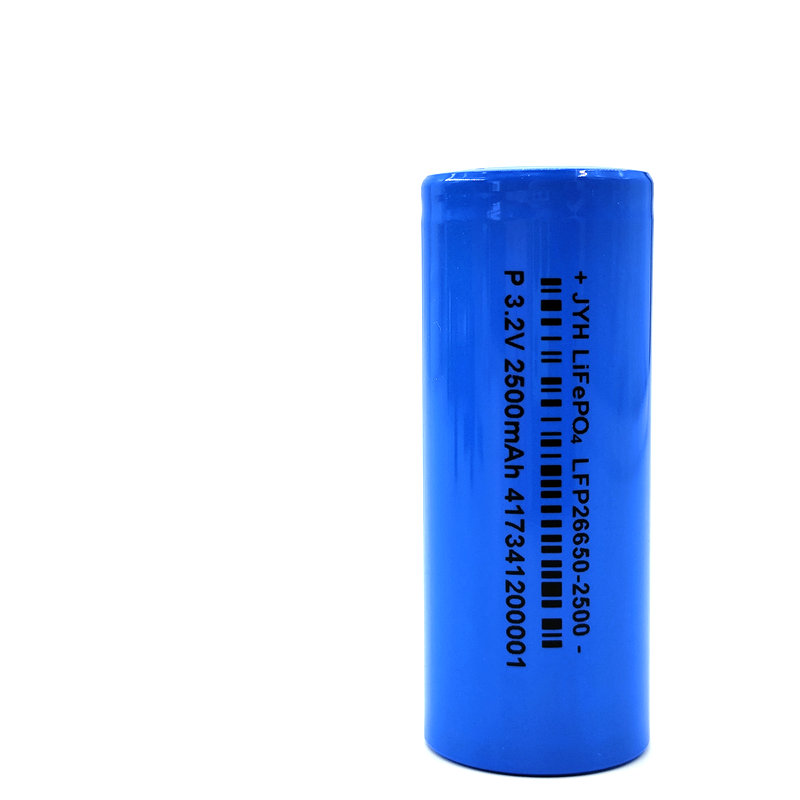

LFP26650P-2500

High Rate Series

Product Features

High rate discharge LFP26650 batteries are a type of lithium iron phosphate battery designed to deliver high power output quickly. They have a high energy density and a long cycle life, making them suitable for applications that require bursts of power, such as power tools, electric vehicles, and emergency backup systems. These batteries can handle high discharge rates without significant voltage drops, ensuring consistent performance. Their advanced chemistry also provides better safety compared to other lithium-ion batteries. Overall, high rate discharge LFP26650 batteries offer a reliable and efficient power solution for demanding applications.

CERTIFICATE OR REPORT:
2006/66/EC and its Article 4 amendment
New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
MSDS
TESTS PASSED:

Environmental Performance
Discharge Capacity at High Temperature
Discharge Capacity at Low Temperature
Constant Temperature and Humidity

Mechanical Performance
Vibration Test
Drop Test

Safety Performance
Overcharge
Over-discharge
Crush
Short-circuit
Heating
Impact
Low Pressure
Get a Quote
  • LFP26650P-2500
  • LFP26650P-2500
  • LiFePO4 Battery - LFP26650P-2500
  • LiFePO4 Battery - LFP26650P-2500

product details

Model LFP26650P-2500
IEC Designation IFpR27/66
Nominal Voltage 3.2V
Nominal Capacity 2500mAh
Typical Capacity 2600mAh after standard charge and standard discharge
Minimum Capacity 2400mAh after standard charge and standard discharge
Standard Charge Constant current at 1250mA charge to 3.65V, then constant
voltage at 3.65V charge till current decline to ≤25mA
Fast Charge Constant current at 2500mA charge to 3.65V, then constant
voltage at 3.65V charge till current decline to ≤25mA
Standard Discharge 2500mA to 2.0V
Fast Discharge 25000mA to 2.0V
Maximum Continuous Charge Current
1250mA (0~15℃)
2500mA (15~25℃)
7500mA (25~45℃)
Maximum Continuous Discharge Current 37500mA
Operating Temperature Charge 0℃ to 45℃
Discharge -20℃ to 60℃
Storage Temperature <1 year-20℃ to 25℃
<3 months -20℃ to 40℃
<30days -20℃ to 50℃
Typical Weight 85g
