Model 型号 |

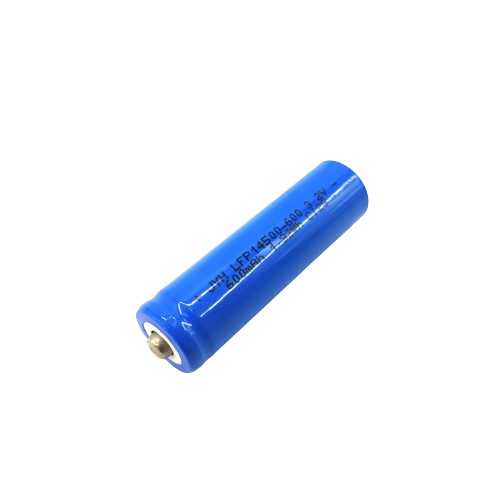

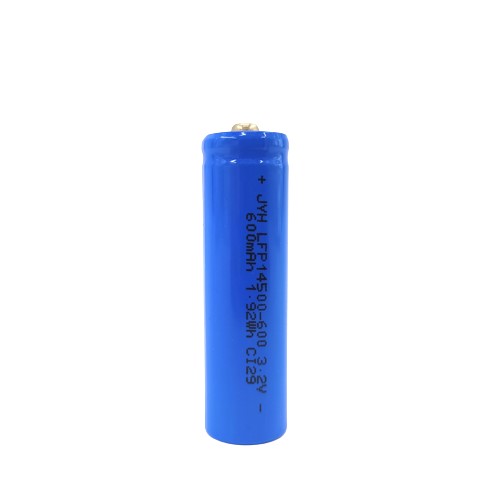

LFP14500-600 |
|
IEC Designation IEC命名 |
IFpR15/51 |
|
Nominal Voltage 标称电压 |
3.2V |
|
Nominal Capacity 标称容量 |
600mAh |
|
Typical Capacity 典型容量 |
300mAh after standard charge and standard discharge 300mAh标准充电和放电条件下 |
|
Minimum Capacity 最低容量 |
580mAh after standard charge and standard discharge 580mAh标准充电和放电条件下 |
|
Standard Charge 标准充电 |
Constant current at 300mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤6mA 300mA恒流充电至3.65V，转恒压3.65V充电至电流≤6mA |
|
Fast Charge 快速充电 |
Constant current at 600mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤6mA 600mA恒流充电至3.65V，转恒压3.65V充电至电流≤6mA |
|
Standard Discharge 标准放电 |
120mA to 2.0V 120mA放电至2.0V |
|
Fast Discharge 快速放电 |
600mA to 2.0V 600mA放电至2.0V |
|
Maximum Continuous Charge Current 最大连续充电电流 |
600mA |
|
Maximum Continuous Discharge Current 最大连续放电电流 |
1800mA |
|
Operating Temperature 操作温度 |
Charge充电 0℃ to 45℃ Discharge放电 -20℃ to 60℃ |
|
Storage Temperature 储存温度 |
<1 year小于1年 -20℃ to 25℃ <3 months小于3个月 -20℃ to 40℃ <30days小于30天 -20℃ to 50℃ |
|
Typical Weight 典型重量 |
18g |
