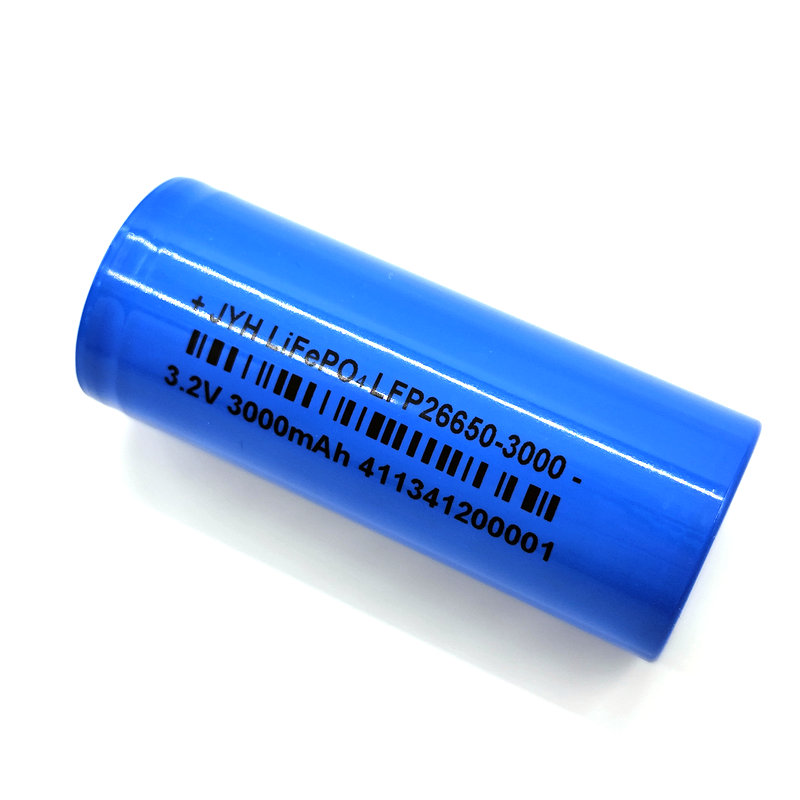

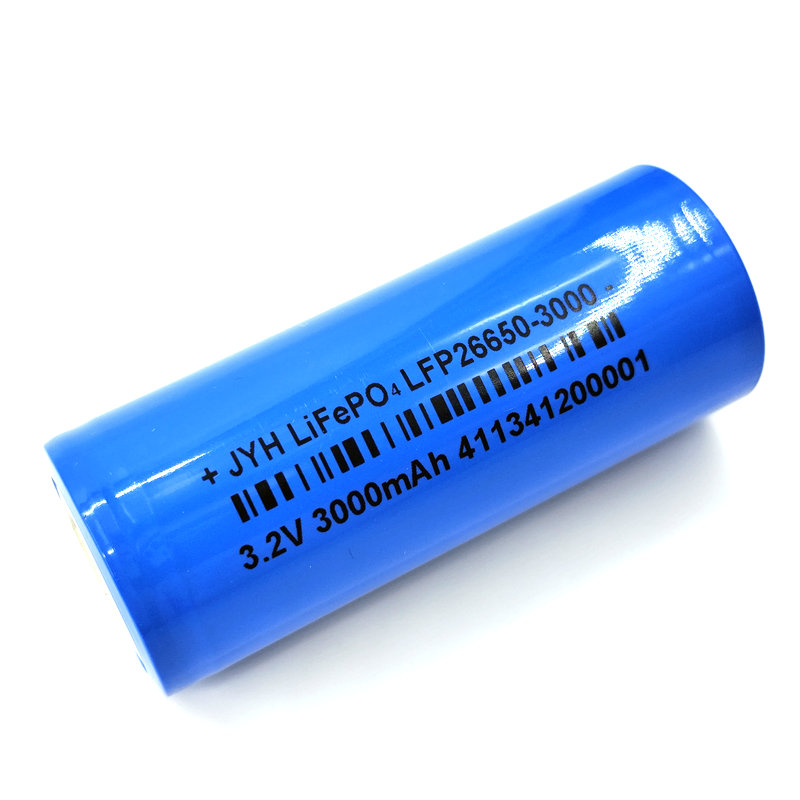

Low Temperature LFP26650-3000

Cold Weather Battery

Product Features

It is well known that normal lithium-ion batteries are not good at low-temperature environments, lithium precipitation will occur if inappropriate usage, which is very likely to have a decrease in both electric and safety performance.

In order to effectively improve this major deficiency, JYH has expended a great deal of research and development efforts, adjusted and optimized the formula of the battery cells. Through unremitting efforts, we have successfully enabled lithium iron phosphate to have excellent performance for charging and discharging at sub-zero conditions. Low temperature batteries can not only be charged below zero degrees, but the discharge capacity can reach nearly 90%.


APPLICATION:
Outdoor exploration and work in cold regions
In the transportation field in northern winters
Military operations in cold regions
Agricultural and forestry operations in winter
Energy storage systems in cold regions
In the aerospace field, in the high-altitude and low-temperature space environment
Logistics and warehousing in winter
Emergency rescue equipment in cold regions

TESTS PASSED:

Environmental Performance
Discharge Capacity at High Temperature
Discharge Capacity at Low Temperature
Constant Temperature and Humidity

Mechanical Performance
Vibration Test
Drop Test

Safety Performance
Overcharge
Over-discharge
Crush
Short-circuit
Heating
Impact
Low Pressure
Get a Quote
  • Low Temperature LFP26650-3000
  • Low Temperature LFP26650-3000
  • LiFePO4 Battery - Low Temperature LFP26650-3000
  • LiFePO4 Battery - Low Temperature LFP26650-3000

product details

Model LFP26650L-3000
IEC Designation IFpR27/66
Nominal Voltage 3.2V
Nominal Capacity 3000mAh
Typical Capacity 3100mAh after standard charge and standard discharge
Minimum Capacity 2900mAh after standard charge and standard discharge
Standard Charge Constant current at 1500mA charge to 3.65V, then constant
voltage at 3.65V charge till current decline to ≤30mA
Fast Charge Constant current at 3000mA charge to 3.65V, then constant
voltage at 3.65V charge till current decline to ≤30mA
Standard Discharge 600mA to 2.0V
Fast Discharge 3000mA to 2.0V
Maximum Continuous Charge Current
600mA (-20℃~0℃)
1500mA (0℃~15℃)
3000mA (15℃~45℃)
1500mA (45℃~60℃)
Maximum Continuous Discharge Current 9000mA
Operating Temperature Charge -20℃ to 45℃
Discharge -40℃ to 60℃
Storage Temperature <1 year-20℃ to 25℃
<3 months -20℃ to 40℃
<30days -20℃ to 50℃
Typical Weight 82g
