Model 型号 |

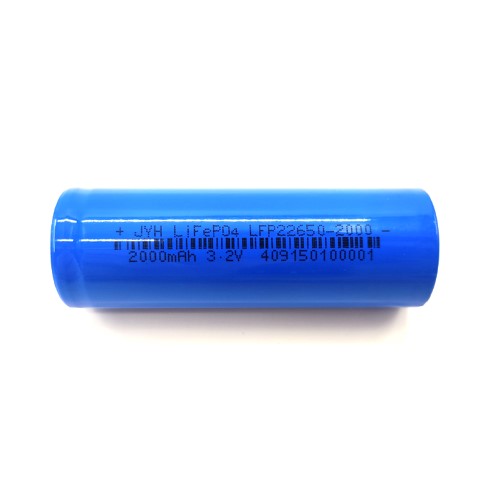

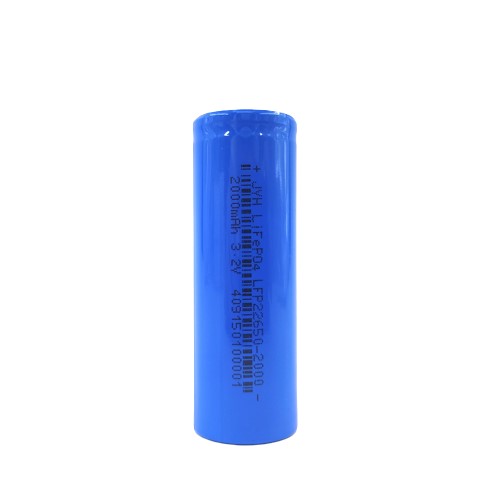

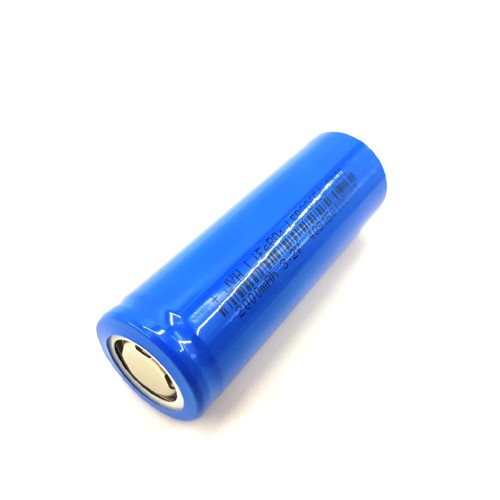

LFP22650-2000 |
|
IEC61960 Designation IEC61960命名 |
IFpR23/66 |
|
Nominal Voltage 标称电压 |
3.2V |
|
Nominal Capacity 标称容量 |
2000mAh |
|
Typical Capacity 典型容量 |
2080mAh after standard charge and standard discharge 2080mAh标准充电和放电条件下 |
|
Minimum Capacity 最低容量 |
1950mAh after standard charge and standard discharge 1950mAh标准充电和放电条件下 |
|
Standard Charge 标准充电 |
Constant current at 1000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤20mA 1000mA恒流充电至3.65V，转恒压3.65V充电至电流≤20mA |
|
Fast Charge 快速充电 |
Constant current at 2000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤20mA 2000mA恒流充电至3.65V，转恒压3.65V充电至电流≤20mA |
|
Standard Discharge 标准放电 |
400mA to 2.0V 400mA放电至2.0V |
|
Fast Discharge 快速放电 |
2000mA to 2.0V 2000mA放电至2.0V |
|
Maximum Continuous Charge Current 最大连续充电电流 |
2000mA |
|
Maximum Continuous Discharge Current 最大连续放电电流 |
6000mA |
|
Operating Temperature 操作温度 |
Charge充电 0℃ to 45℃ Discharge放电 -20℃ to 60℃ |
|
Storage Temperature 储存温度 |
<1 year小于1年 -20℃ to 25℃ <3 months小于3个月 -20℃ to 40℃ <30days小于30天 -20℃ to 50℃ |
|
Typical Weight 典型重量 |
62g |
