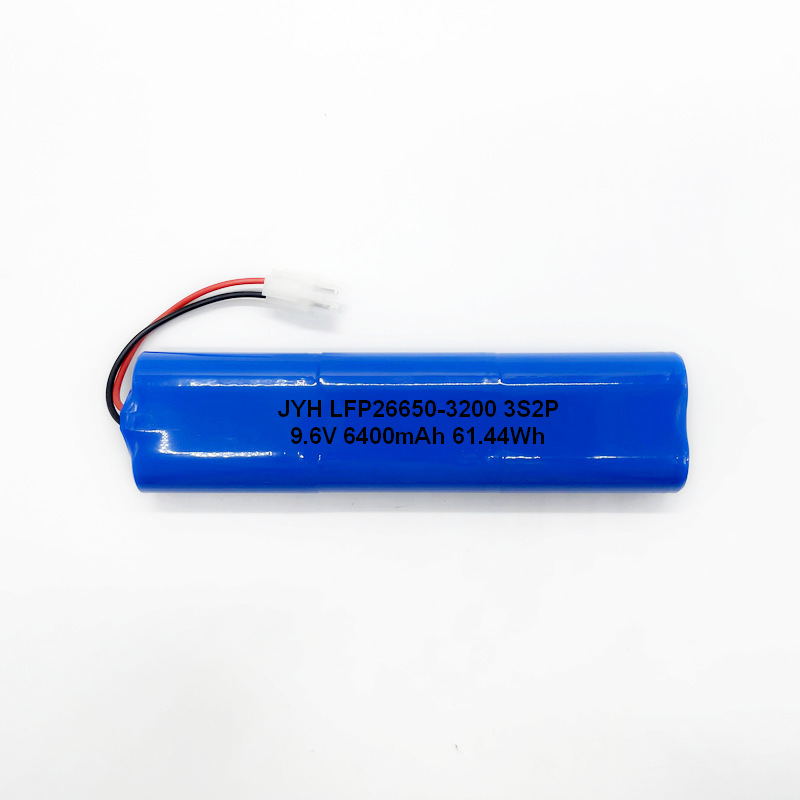

| Model | LFP26650-3200 3S2P |
| IEC Designation | 6IFpR27/66 |
| Nominal Voltage | 9.6V |
| Nominal Capacity | 6400mAh |
| Typical Capacity | 6400mAh after standard charge and standard discharge |
| Minimum Capacity | 6080mAh after standard charge and standard discharge |
| Standard Charge |
Constant current at 1280mA charge to 10.8V, then constant voltage at 10.8V charge till current decline to ≤128mA |
| Fast Charge |
Constant current at 3200mA charge to 10.8V, then constant voltage at 10.8V charge till current decline to ≤128mA |
| Standard Discharge | 1280mA to 7.5V |
| Fast Discharge | 3200mA to 7.5V |
| Maximum Continuous Charge Current |
0~10℃ 1280mA 10~20℃ 3200 mA 20~60℃ 4000 mA |
| Maximum Continuous Discharge Current | 4000mA |
| Operating Temperature |
Charge 0℃ to 60℃ Discharge -10℃ to 70℃ |
| Storage Temperature |
<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 500g |
| PCM Electrical Characteristics | PCM Parameters are adjustable depends on different solutions |
| Overcharge detection voltage | 3.90±0.025V |
| Over-discharge detection voltage | 2.00±0.050V |
| Overcurrent detection current |
7-13A Cut load, recover after charging |
| Short detection condition |
Exterior short circuit Cut load, recover after charging |
