Model 型号 |

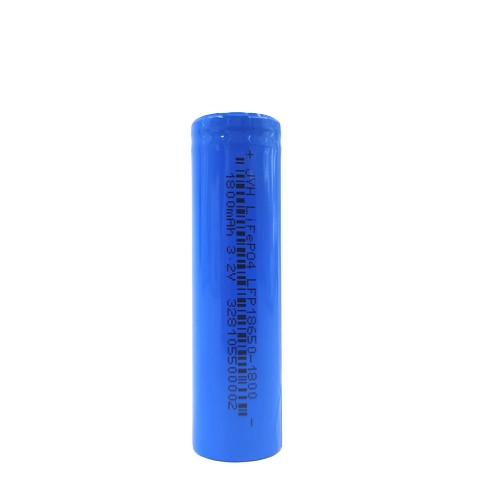

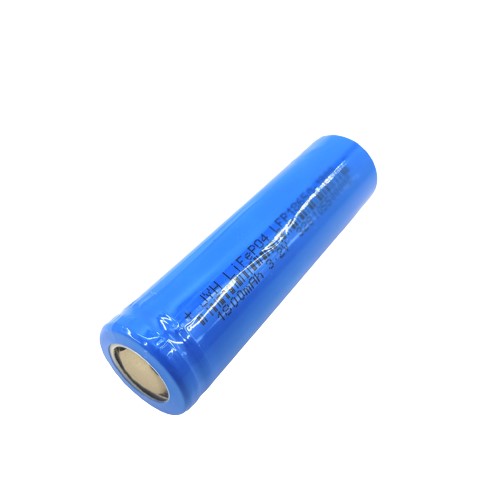

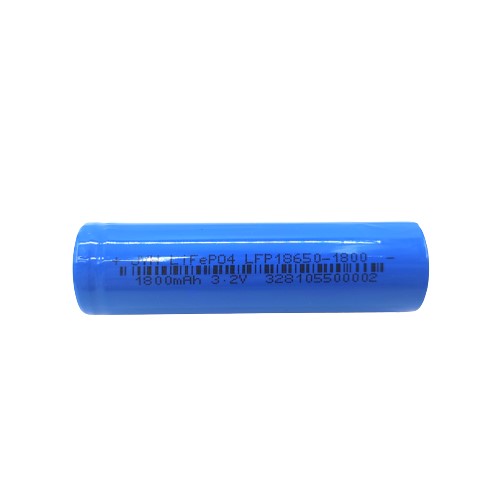

LFP18650-1800 |
|
IEC Designation IEC命名 |
IFpR19/66 |
|
Nominal Voltage 标称电压 |
3.2V |
|
Nominal Capacity 标称容量 |
1800mAh |
|
Typical Capacity 典型容量 |
1850mAh after standard charge and standard discharge 1850mAh标准充电和放电条件下 |
|
Minimum Capacity 最低容量 |
1900mAh after standard charge and standard discharge 1900mAh标准充电和放电条件下 |
|
Standard Charge 标准充电 |
Constant current at 900mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤18mA 900mA恒流充电至3.65V，转恒压3.65V充电至电流≤18mA |
|
Fast Charge 快速充电 |
Constant current at 1800mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤18mA 1800mA恒流充电至3.65V，转恒压3.65V充电至电流≤18mA |
|
Standard Discharge 标准放电 |
360mA to 2.0V 360mA放电至2.0V |
|
Fast Discharge 快速放电 |
1800mA to 2.0V 1800mA放电至2.0V |
|
Maximum Continuous Charge Current 最大连续充电电流 |
1800mA |
|
Maximum Continuous Discharge Current 最大连续放电电流 |
5400mA |
|
Operating Temperature 操作温度 |
Charge充电 0℃ to 45℃ Discharge放电 -20℃ to 60℃ |
|
Storage Temperature 储存温度 |
<1 year小于1年 -20℃ to 25℃ <3 months小于3个月 -20℃ to 40℃ <30days小于30天 -20℃ to 50℃ |
|
Typical Weight 典型重量 |
42g |
