- LiFePO4 has a good performance in high temperature environment, long cycle life and safety.
- Based on latest requirement of IEC/EN 60598-2-22, Lithium battery should comply with IEC 62133-2 and IEC 62620, JYH LiFePO4 batteries can fully meet above standards.
APPLICATION
Evacuation Light, Exit sign, ELU, Solar Light, Personal Care, Medical Devices, Roof, Backup Power....
OEM, ODM SUPPORT

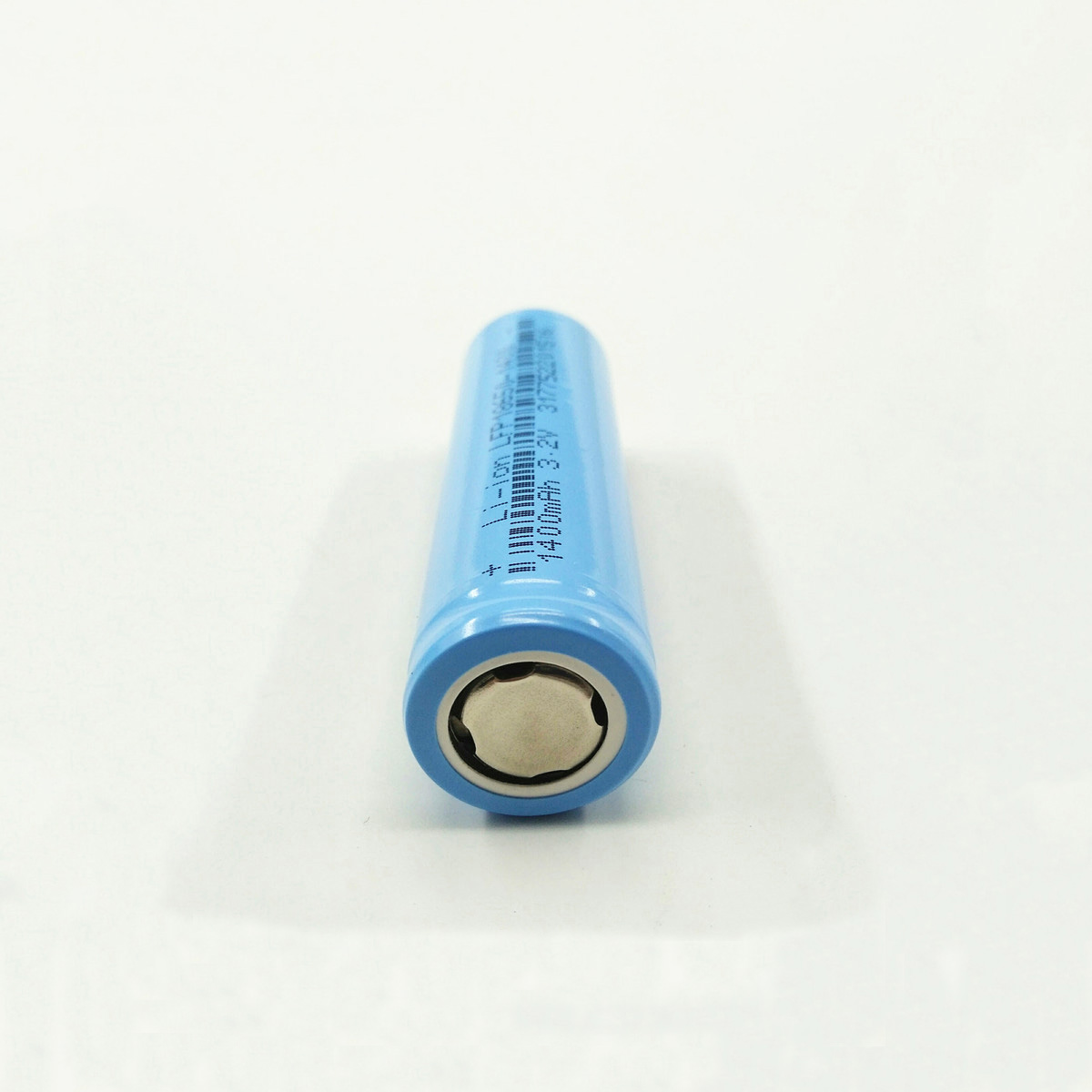

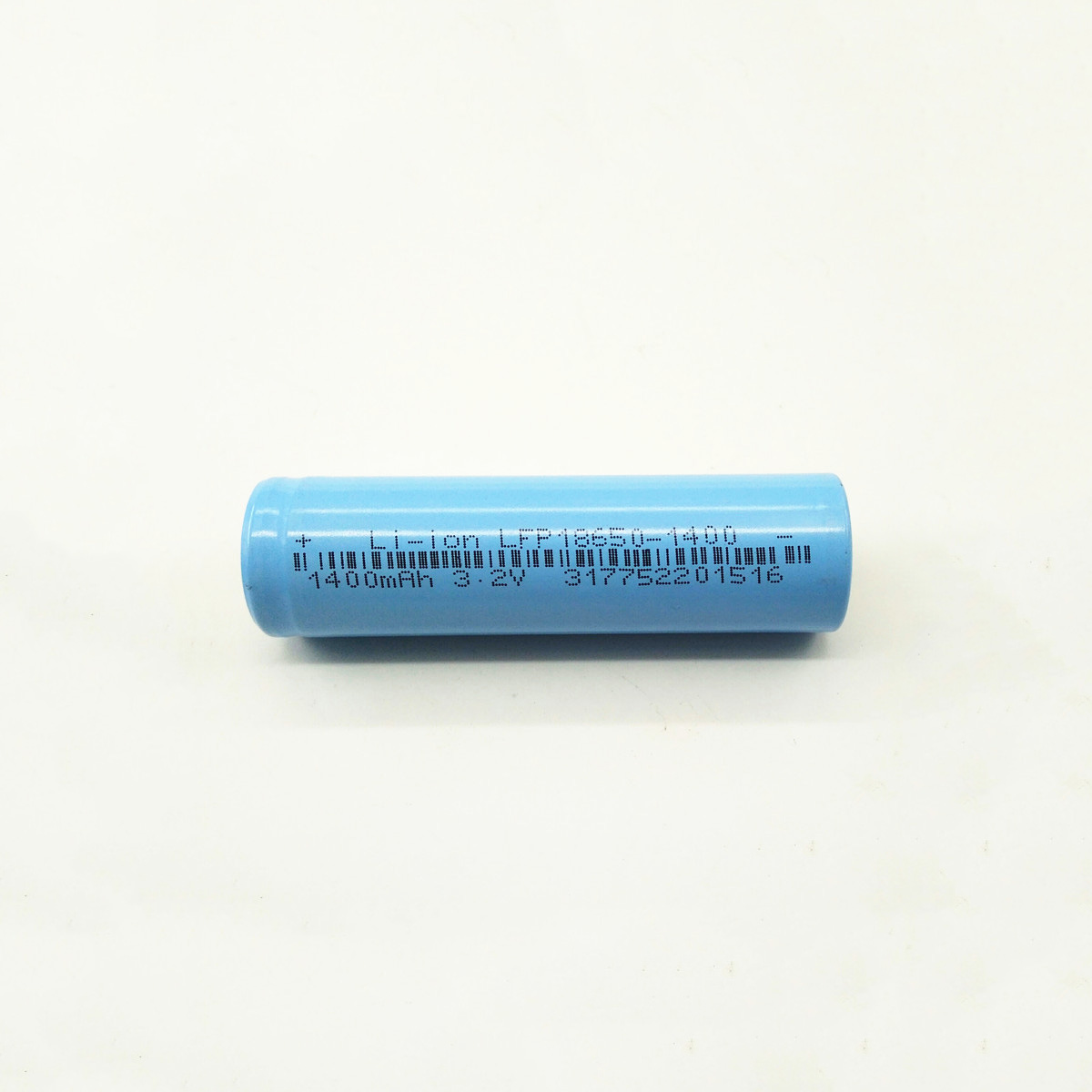

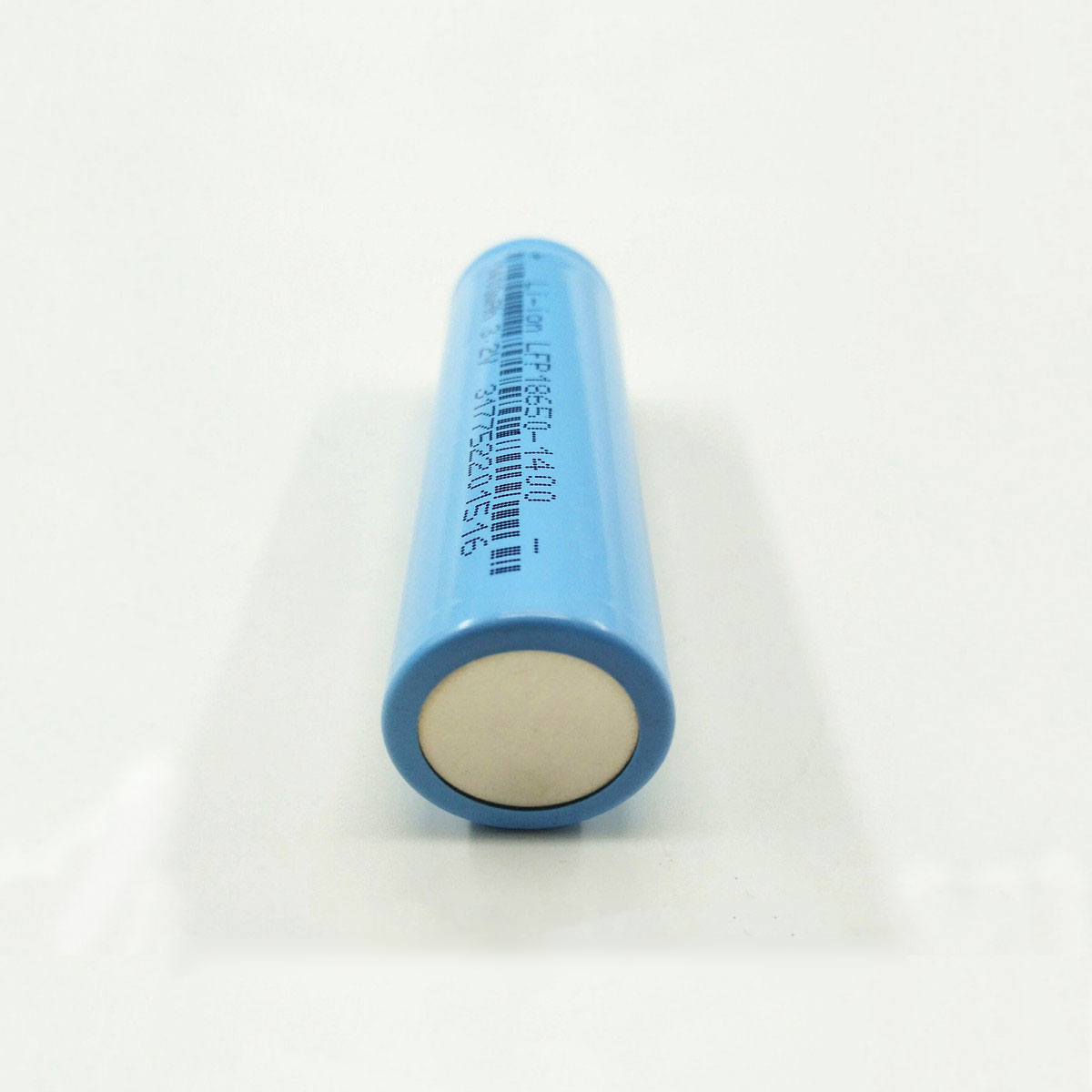

| Model Name | LFP18650-1400 |
|---|---|
| Nominal Voltage | 3.2V |
| Nominal Capacity | 1400mAh |
| Typical Capacity | 1460mAh after standard charge and standard discharge |
| Minimum Capacity | 1350mAh after standard charge and standard discharge |
| Standard Charge | Constant current at 700mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤14mA |
| Fast Charge | Constant current at 1400mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤14mA |
| Standard Discharge | 280mA to 2.0V |
| Fast Discharge | 1400mA to 2.0V |
| Maximum Continuous Charge Current | 1400mA |
| Maximum Continuous Discharge Current | 4200mA |
| Operating Temperature |
Charge 0℃ to 45℃ Discharge -20℃ to 60℃ |
| Storage Temperature |
<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃ |
| Typical Weight | 38g |
