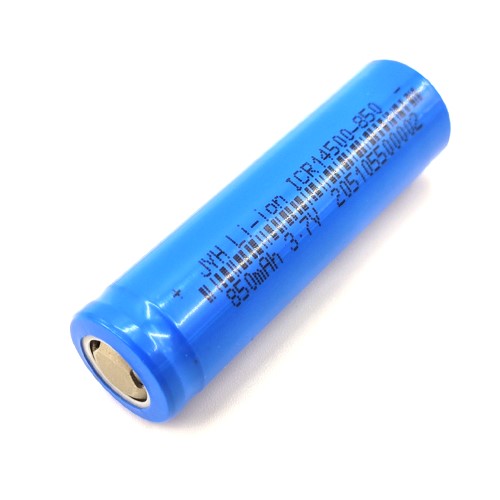

ICR14500-850

Standard Series

Product Features

Li-ion, AA size, high capacity

CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- UL1642
- IEC 62133-2
- UN 38.3

APPLICATION
Evacuation Light, Exit sign, ELU, Solar Light, Personal Care, Medical Devices, Roof, Backup Power....

OEM, ODM SUPPORT

TESTS PASSED:

Environmental Performance
Discharge Capacity at High Temperature
Discharge Capacity at Low Temperature
Constant Temperature and Humidity

Mechanical Performance
Vibration Test
Drop Test

Safety Performance
Overcharge
Over-discharge
Crush
Short-circuit
Heating
Impact
Low Pressure

Get a Quote

product details

Model	ICR14500-850
Nominal Voltage	3.7V
Nominal Capacity	850mAh
Typical Capacity	880mAh after standard charge and standard discharge
Minimum Capacity	820mAh after standard charge and standard discharge
Standard Charge	Constant current at 425mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤8.5mA
Fast Charge	Constant current at 850mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤8.5mA
Standard Discharge	170mA to 2.75V
Fast Discharge	850mA to 2.75V
Maximum Continuous Charge Current	850mA
Maximum Continuous Discharge Current	1700mA
Operating Temperature	Charge 0℃ to 45℃ Discharge -20℃ to 60℃
Storage Temperature	<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃
Typical Weight	19g
