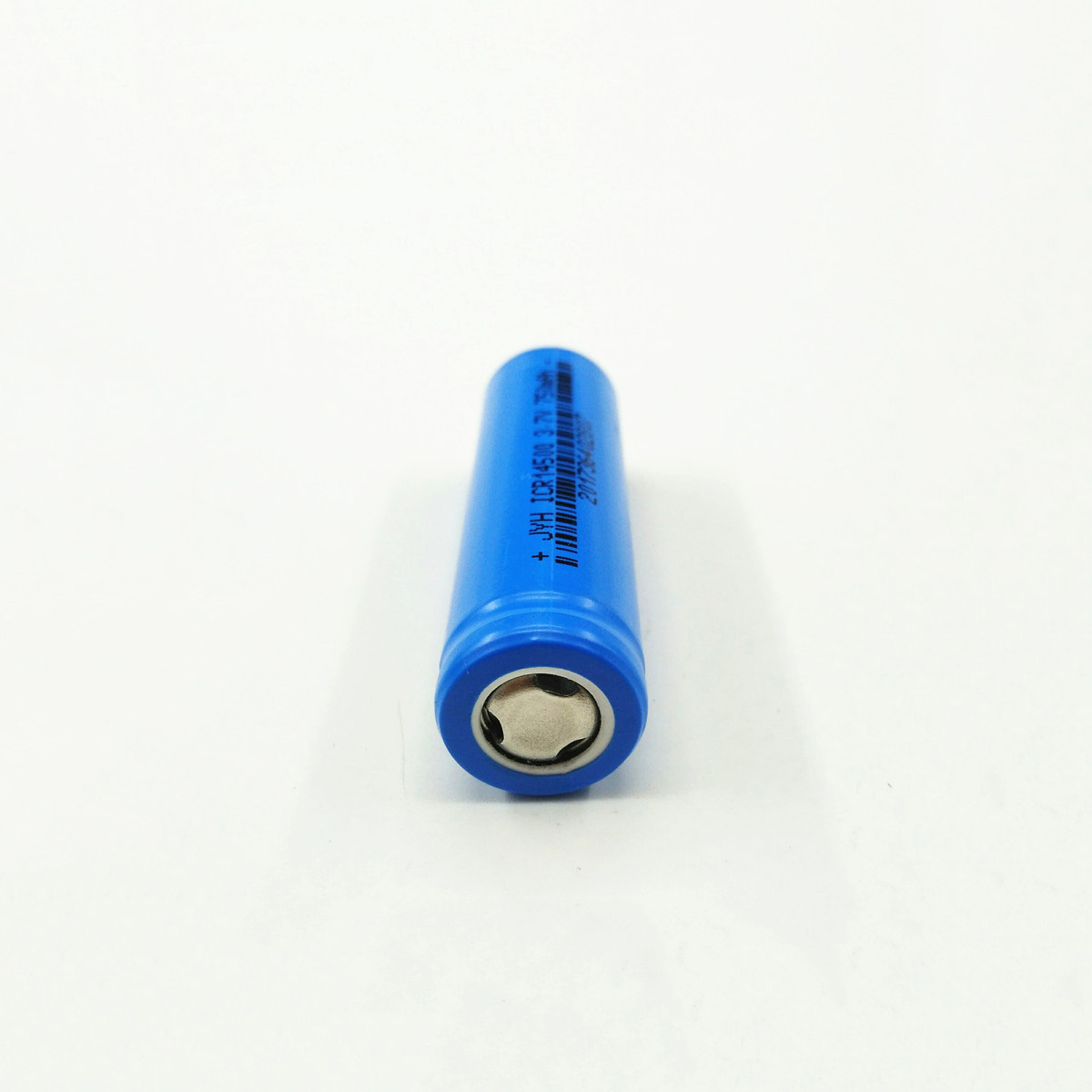

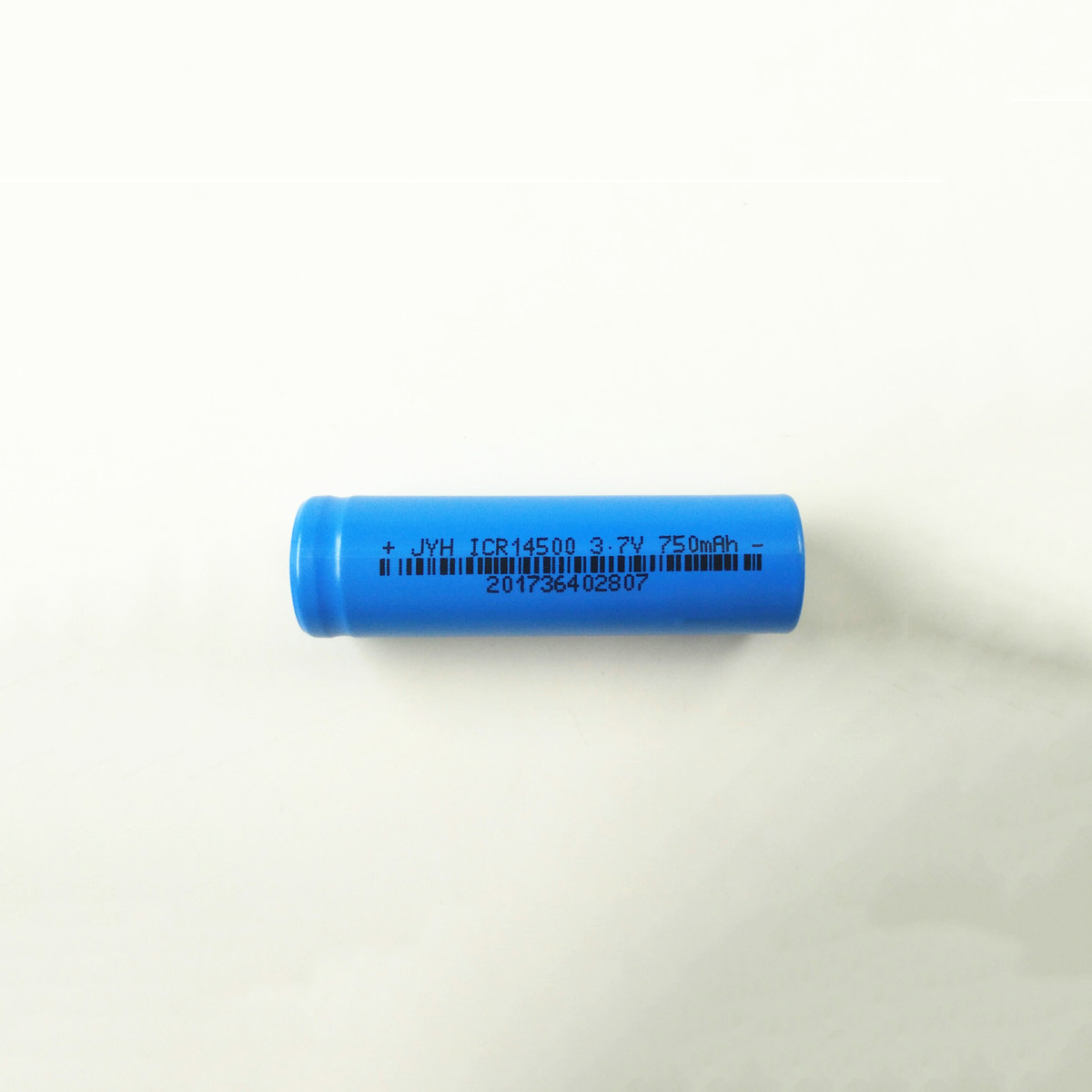

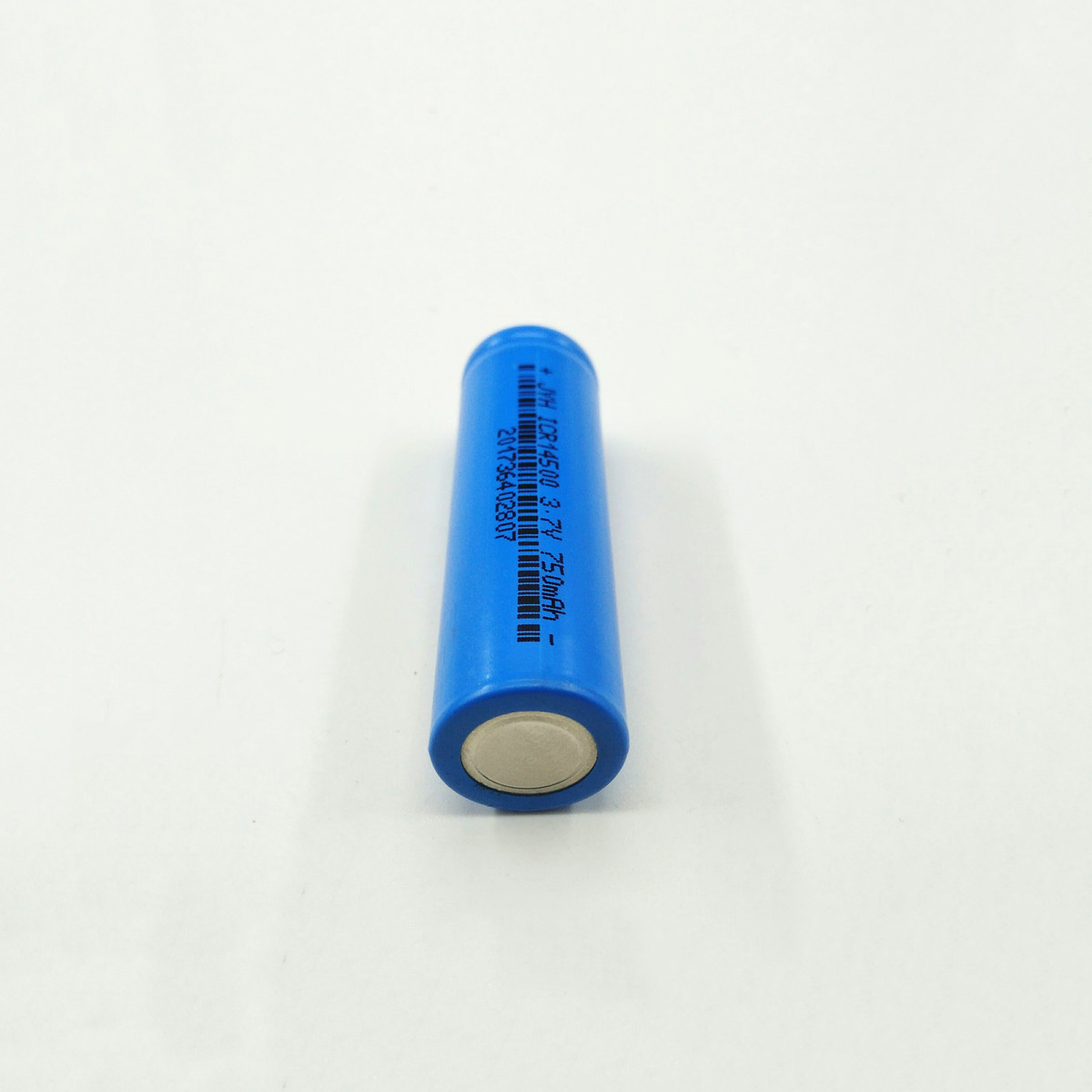

ICR14500-750

Standard Series

Product Features

Li-ion, AA size, high capacity

CERTIFICATE OR REPORT
- ROHS Directive (2006/66/EC and its amendment)
- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking
- MSDS
- UL1642
- IEC 62133-2
- UN 38.3

APPLICATION
Evacuation Light, Exit sign, ELU, Solar Light, Personal Care, Medical Devices, Roof, Backup Power....

OEM, ODM SUPPORT

TESTS PASSED:

Environmental Performance
Discharge Capacity at High Temperature
Discharge Capacity at Low Temperature
Constant Temperature and Humidity

Mechanical Performance
Vibration Test
Drop Test

Safety Performance
Overcharge
Over-discharge
Crush
Short-circuit
Heating
Impact
Low Pressure

Get a Quote

product details

Model Name	ICR14500-750
Nominal Voltage	3.7V
Nominal Capacity	750mAh
Typical Capacity	780mAh after standard charge and standard discharge
Minimum Capacity	730mAh after standard charge and standard discharge
Standard Charge	Constant current at 300mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤7.5 mA
Fast Charge	Constant current at 750mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤7.5mA
Standard Discharge	150mA to 2.75V
Fast Discharge	750mA to 2.75V
Maximum Continuous Charge Current	750mA
Maximum Continuous Discharge Current	1500mA
Operating Temperature	Charge 0℃ to 45℃	Discharge -20℃ to 60℃
Storage Temperature	<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃
Typical Weight	19g
